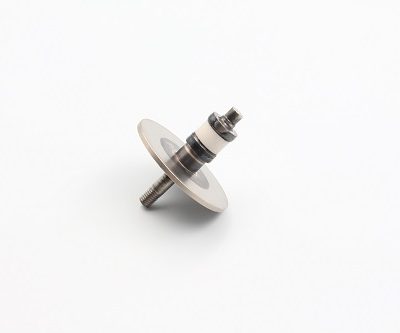

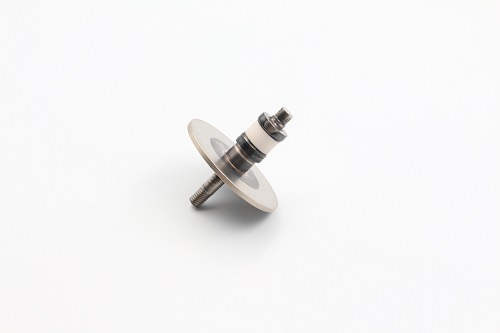

InSealing Power Feedthroughs transmit varying amounts of voltage, and current, from an external power supply to inside the vacuum chamber which powers the customer application. Our products provide a wide variety of conductor sizes and alumina ceramic designs to satisfy the electrical system requirements.
General Specifications:
| Working Voltage | Up to 100KV |
| Current Rating | Up to 1000A |
| Vacuum Rating | Better than 1×10-9 mbar litre sec-1 |
| Operating Temperature | -270°C to 450°C |
| Flange Mouting | KF, CF, LF |
| Number of Conductors | Up to 100 |
| Conductor Material | Kovar, Stainless Steel, Copper, Nickel, Molybdemum etc. |
As its reliable sealing performance and good high-voltage insulation performance, it is widely used in ultra-high vacuum and high vacuum systems, and is used to connect the vacuum system with the outside world to transmit voltage, electrical signals, temperature signals, measurement signals, etc.
