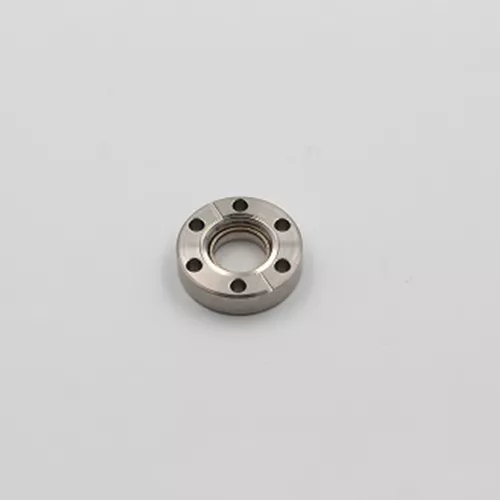

You ever wonder how scientists see what’s happening inside a giant particle accelerator? You know, those massive machines that smash atoms together? Well, they can’t just open a hatch and take a peek. The entire interior is under UHV vacuum—that’s Ultra-High Vacuum. It’s a space emptier than deep space itself. So, how do they see in? That’s the job of a specialized component, a true unsung hero: the Glass Viewports-UHV Vacuum Viewports. And in high-energy physics, this isn’t just a window; it’s a critical, high-performance barrier.
The Core Challenge: Seeing the Unseeable
Think about it. These experiments happen in a pristine vacuum. Why? Because even a few stray gas molecules can wreck everything. They can collide with the particle beam, scattering it, creating false data, and completely ruining the experiment. So, the entire beam path must be sealed tighter than a bank vault. But… you still need to see. You need to align equipment, monitor beam position, and sometimes even use lasers. That’s the paradox. You need a perfect, hermetic seal that also lets light through. That’s exactly what a UHV vacuum viewport does. It’s a marriage of ultra-strong metal (like stainless steel) and incredibly clear, robust optical glass or ceramic, all fused together with techniques like… well, the one I know best: specialized welding and brazing.
Why They’re Perfect for Particle Accelerators
Not just any window can handle this. The Glass Viewports used here are built differently. They have to meet insane standards.
First, and foremost: leak-tight integrity. I mean, we’re talking about a leak rate so low it’s almost immeasurable. Less than 1×10⁻⁹ mbar·L/s. That’s not a suggestion; it’s an absolute requirement. Any leak is a failure.
Then there’s material outgassing. The materials used—the metal body, the glass, the sealing method—must not release any of their own gases when under vacuum and when baked out. These systems are baked at hundreds of degrees Celsius to drive off any surface moisture and contaminants. Our viewports have to withstand that heat without cracking, leaking, or fogging up. No room for error.
And we can’t forget radiation hardness. Inside an accelerator, everything is bombarded with radiation. A standard window could turn brown and opaque—a process called “radiation darkening.” The glass viewports for UHV in physics use special radiation-resistant glasses or crystals like fused silica or sapphire. They stay crystal clear, mission after mission.
More Than Just a Window: Specific Applications
In your average lab, a viewport is for looking. In high-energy physics, it’s a multifunctional tool.
Beam Diagnostics: Engineers use them to image the beam itself or to insert delicate diagnostic sensors.
Laser Introduction: Lasers are used for everything from cooling atoms to aligning components. The viewport is the entry point.
Barrier Windows: They often act as a physical barrier between different vacuum sections, containing a potential mishap to one area.
So, next time you hear about a discovery at CERN or another national lab, remember the tiny details. Remember the components that make it possible. That viewport isn’t just a piece of glass. It’s a masterpiece of material science and precision engineering. It’s a UHV Vacuum Viewport—the silent, clear guardian of scientific discovery.
