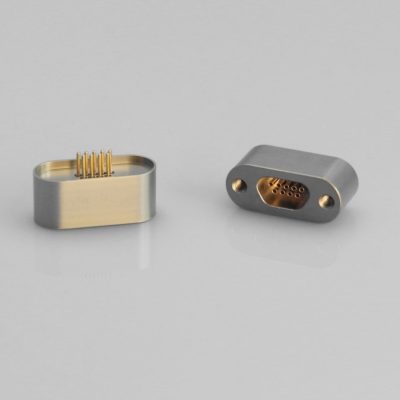

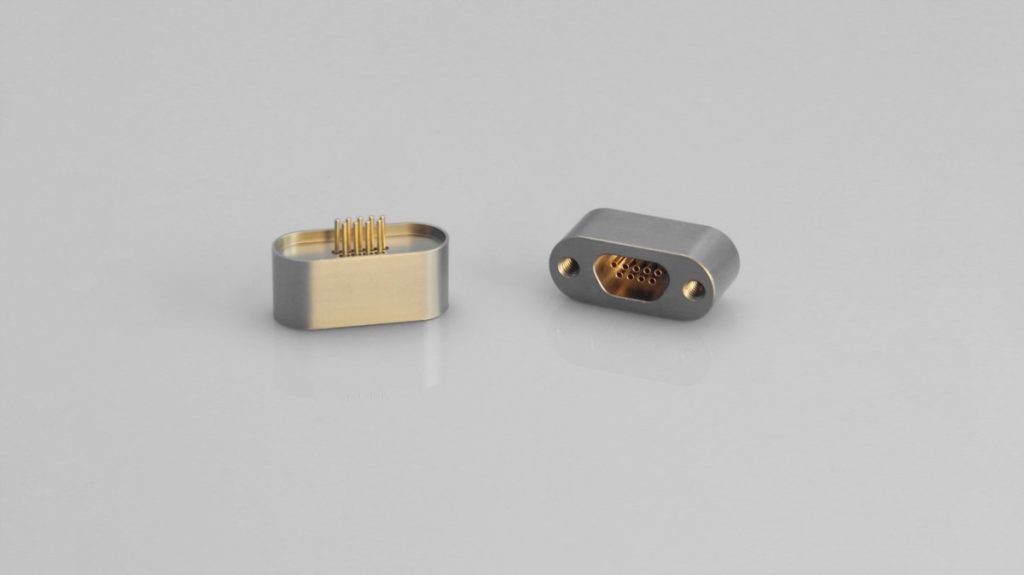

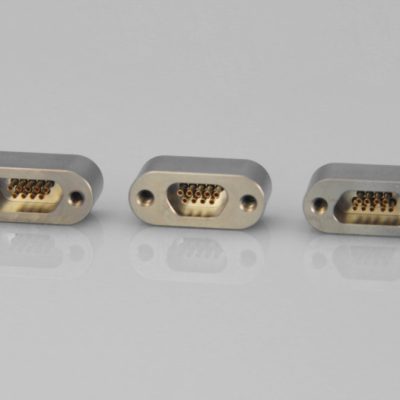

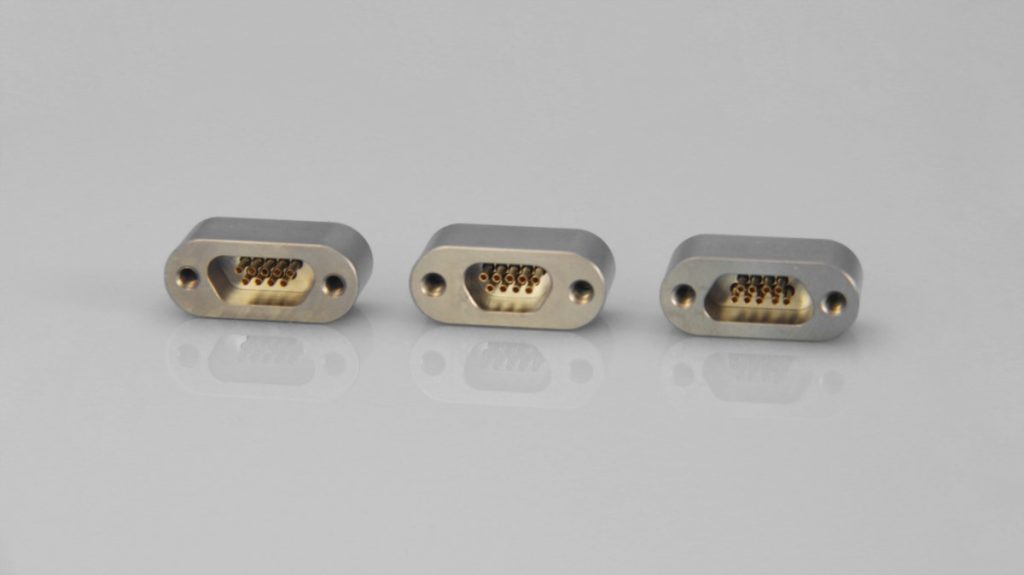

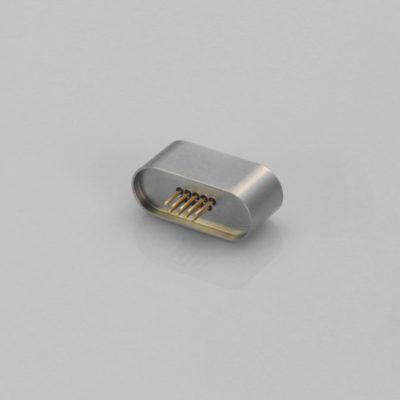

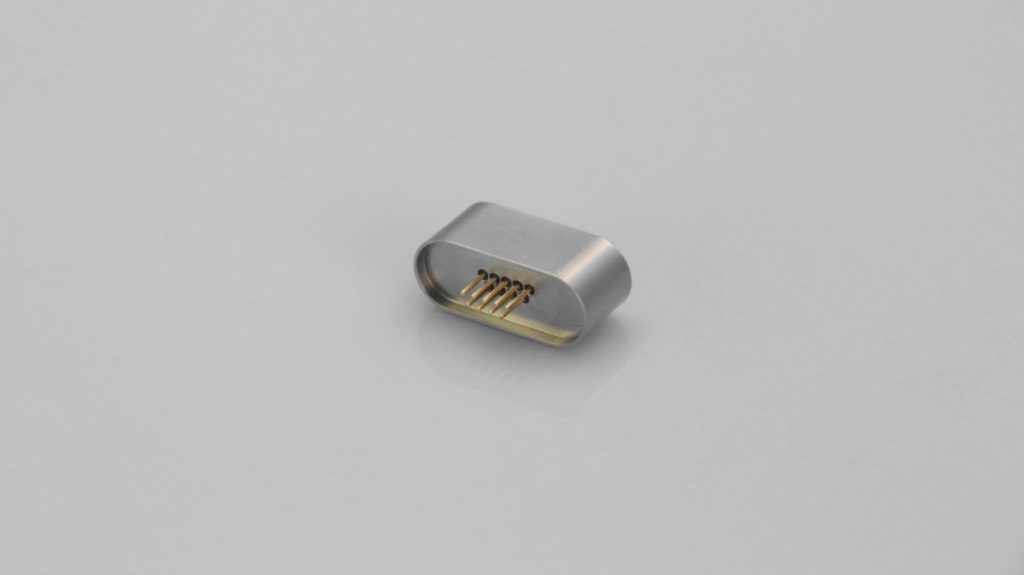

InSealing manufactures 9 Pin Micro D Connector is a specific type of glass-to-metal sealing electrical connector used for detector instruments and electrics device in various applications.
It is Micro-D type multipin feedthrough with 9pins, 375Volts, 1Amps per pin, Weldable Mount.
| Number of Conductors | 9 |
| Style | Micro-D |
| Voltage | 375 Volts |
| Current | 1.0 Amps |
| Mount Style | Weld |
| Conductor Diameter | 0.5mm |
| Conductor Material | Stn Stl |
| Temperature Range | -269 to 450 ℃ |
| Pressure Range | 1450 psi |
Customized design is available.
These connectors are known for their compact size and high hermetic, making them ideal for glass-to-metal sealing electronic part.
